BSFC Calculator

Name: BSFC Calculator
Author: Jitendra Kumar

Calculate brake specific fuel consumption from fuel flow and brake power, or work backward from a target BSFC to estimate fuel flow, thermal efficiency, cost, CO2, and duty-cycle impact.

Last Updated: June 2026

Calculation mode

Calculate BSFC from fuel flow or estimate required fuel flow from target BSFC.

Power input method

Fuel type

240-320 g/kWh for many spark-ignition engines near efficient load

Measured fuel flow

lb/hr

Used in fuel-flow-to-BSFC mode.

Fuel flow unit

Target BSFC

g/kWh

Used to estimate required fuel flow in reverse mode.

Brake power

Use dyno brake power at the same operating point.

Power unit

Torque

lb-ft

Used when power method is torque and RPM.

Torque unit

Engine speed

rpm

Used with torque to calculate brake power.

Torque-derived power: 299.9 hp. Select torque/RPM mode if this is the power basis you want to use.

Fuel price

$/gal

Used only for cost estimates.

Operating hours

Average load factor

Cost and CO2 session totals use this load factor.

Brake specific fuel consumption

267.6 g/kWh

Imperial BSFC

0.44 lb/hp/hr

Brake thermal efficiency

31%

Fuel flow

21.23 gal/hr

Brake power

300 hp

Fuel cost per hour

$87.05

Energy and Power Balance

Brake power output223.7 kW

Fuel energy input721.8 kW

Thermal efficiency %31%

Fuel Flow Conversions

Metric	Value
Fuel mass flow	59.87 kg/hr
Fuel mass flow	132 lb/hr
Fuel flow	80.37 L/hr
Fuel flow	16.632 g/s
Target fuel flow	22.61 gal/hr
Target fuel flow	140.56 lb/hr

Duty, Cost, and CO2

Metric	Value
Session fuel cost	$113.16
Cost per kWh output	$0.39
CO2 per hour	188.74 kg/hr
Session CO2	245.37 kg
Interpretation	Typical operating point

Model Inputs Used

Assumption	Value	Why it matters
BSFC formula	BSFC = fuel mass flow / brake power	The calculator reports both g/kWh and lb/hp/hr.
Power basis	300 hp	Use brake power at the same operating point as the measured fuel flow.
Fuel profile	Gasoline / E10; LHV 43.4 MJ/kg; density 0.745 kg/L	Thermal efficiency and volume conversions depend on fuel properties.
Duty estimate	2 hr at 65% load factor	Cost and CO2 totals use this duty assumption, not full-load hours unless load is 100%.

BSFC Calculator Safety and Testing Notice

This calculator is an educational estimator. It does not certify an engine, emissions result, fuel-system design, dyno correction, marine installation, generator endurance rating, or legal compliance. Use measured data, official test procedures, and qualified professional review before making tuning, safety, or regulatory decisions.

Checked by Jitendra Kumar

BSFC Calculator is checked for formula labels, source links, and result limits.

Jitendra Kumar, Founder & Editorial Standards Lead. Updated June 2026. Scope: automotive calculators.

Sources & methodology · Review standards

How to Use the BSFC Calculator

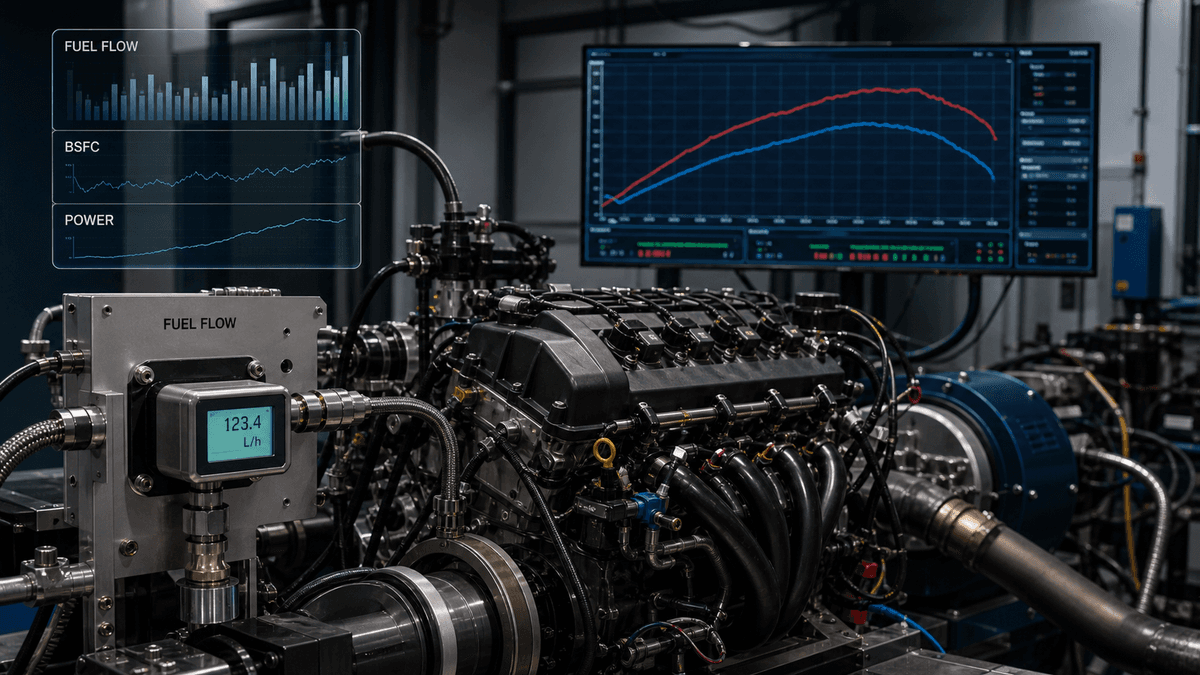

Engine dynamometer lab with fuel flow meter and brake specific fuel consumption dashboard overlays — Use fuel flow and brake power from the same engine point. BSFC is most useful when it is tied to a clear speed, load, fuel, and measurement method.

Quick answer

BSFC is fuel mass flow divided by brake power. In metric units, g/kWh = kg/hr x 1000 / kW. This calculator improves on a basic BSFC equation by converting volume and mass fuel-flow units, calculating power from torque and RPM, estimating brake thermal efficiency from fuel lower heating value, and showing cost, CO2, and duty-cycle context.

Choose whether you are calculating BSFC from a measured fuel flow or estimating fuel flow from a target BSFC. Select the fuel, enter brake power directly or calculate it from torque and RPM, then add fuel price, operating time, and average load factor if you want a practical cost or endurance estimate.

The most important rule is consistency: fuel flow, power, torque, RPM, and fuel type must all describe the same engine operating point. A steady generator point, a dyno sweep point, and a vehicle drive-cycle average are not interchangeable.

Step 1: Choose the calculation direction
Use fuel-flow-to-BSFC when you have measured fuel use. Use target-BSFC-to-fuel-flow when you are planning pump, injector, tank, or endurance assumptions.
Step 2: Enter brake power or torque and RPM
Use brake power from the dyno, generator rating, or shaft output. If you only have torque and speed, the calculator derives power from the same operating point.
Step 3: Select fuel type and fuel-flow units
Mass-flow units are direct. Volume-flow units require density, so the selected fuel profile changes gallons-per-hour and liters-per-hour conversions.
Step 4: Add cost and duty assumptions
Fuel price, operating hours, and load factor estimate operating cost and CO2 for the session or duty period.
Step 5: Review warnings and cross-checks
Very low BSFC, very high efficiency, or long full-load duty warnings usually mean you should recheck units, data source, and test conditions.

BSFC Formula, Units, and Efficiency Model

Brake specific fuel consumption is a point measurement: how much fuel mass is needed to create one unit of brake power. The calculator keeps both common unit systems visible because dyno sheets often use lb/hp/hr while engine maps and standards discussions often use g/kWh.

For efficiency, the calculator uses fuel lower heating value. That means a fuel with lower energy per kilogram can require more fuel mass for the same power even when the engine hardware is performing well. This is why E85, methanol, gasoline, diesel, and propane should not be compared by gallons per hour alone.

Model part	Formula	Why it matters
Core BSFC formula	BSFC = fuel mass flow / brake power	Use fuel mass flow and brake power from the same speed, load, and test point.
Metric BSFC	g/kWh = kg/hr x 1000 / kW	Best for engine maps, generator comparisons, and fuel-energy efficiency checks.
Imperial BSFC	lb/hp/hr = lb/hr / hp	Common in engine building, dyno sheets, boosted-horsepower planning, and fuel-system sizing.
Power from torque and RPM	hp = torque lb-ft x RPM / 5252; kW = torque N·m x RPM / 9549	Useful when the dyno or data log gives torque at an operating point instead of power.
Brake thermal efficiency	BTE = 3600 / (BSFC g/kWh x fuel LHV MJ/kg)	Connects fuel mass consumption to fuel energy content. Lower heating value assumptions matter.
Fuel cost for a duty period	Cost = gal/hr x price/gal x hours x load factor	Turns a single engine point into a rough session, generator, marine, or test-cell planning number.

How to Interpret Brake Specific Fuel Consumption

What Makes This More Useful Than a Basic BSFC Tool

A basic calculator can divide fuel flow by power. This version also shows the hidden assumptions that usually cause bad BSFC decisions: mass versus volume flow, fuel density, lower heating value, torque-derived power, duty-cycle cost, and whether the resulting thermal efficiency is physically plausible.

Scenario	Inputs	What the result tells you
Gasoline dyno pull	300 hp, 132 lb/hr gasoline	About 0.44 lb/hp/hr, or roughly 268 g/kWh, before considering transient enrichment or correction-factor differences.
Diesel generator load point	520 kW, 36 gal/hr diesel	About 218 g/kWh, a useful planning point for fuel cost and endurance checks at a steady load.
Torque/RPM engine point	260 lb-ft at 4,200 rpm, 12.5 gal/hr gasoline	Converts torque and speed into brake power first, then compares fuel flow against that exact point.
Target E85 fuel planning	480 hp, target 390 g/kWh	Estimates required fuel flow for an ethanol-blend setup, where higher mass flow is expected because energy density is lower.

BSFC Ranges and Red Flags

Result pattern	Likely interpretation	Before trusting it
Very low BSFC	Check units first	Results below about 145 g/kWh usually imply exceptional efficiency or a mismatch between power, flow, and fuel units.
Efficient range	Often around 190-240 g/kWh for efficient diesel points	A realistic number still depends on speed, load, fuel, emissions strategy, and test method.
Typical gasoline range	Often around 240-320 g/kWh near useful load	Warmed-up, steady-state values can be much better than idle, warm-up, or transient operation.
High fuel consumption	Often above 360 g/kWh	May reflect rich mixtures, boost, cold operation, low load, idle, incorrect density, or a true inefficient point.

Common BSFC Mistakes

Mistake	Why it matters
Mixing fuel flow and power from different moments	BSFC is point-specific. Fuel flow from one RPM/load point and power from another can produce a meaningless ratio.
Using volume flow without fuel density	BSFC is a mass-based number. Gallons per hour or liters per hour must be converted using the selected fuel density.
Comparing gasoline, diesel, E85, and methanol without energy context	Different lower heating values change fuel mass flow and brake thermal efficiency interpretation.
Treating target BSFC as a fuel-system guarantee	Pump, injector, voltage, pressure, line size, return flow, temperature, and safety margin still need real validation.
Calling an educational estimate a certified emissions test	Regulatory engine testing has strict procedures, calibrations, cycles, and recordkeeping that a web calculator cannot replace.

Institutional Video Context

The official or institutional video landscape is thin for a neutral BSFC tutorial. The most relevant credible video found in June 2026 is a National Renewable Energy Laboratory fuels-and-engines R&D overview, which is useful context for why fuel properties, engine efficiency, and test data matter.

Related Engine and Fuel Workflows

Estimate boosted fuel demand with the Boost Horsepower Calculator, turn fuel use into trip spending with the Fuel Cost / Gas Mileage Calculator, or compare MPG and L/100km with the Fuel Consumption Converter.

Keep the research moving with Boost Horsepower Calculator, Fuel Cost / Gas Mileage Calculator, Fuel Consumption Converter, and 0-60 Calculator.

Frequently Asked Questions

BSFC means brake specific fuel consumption. It is the fuel mass flow an engine uses to produce one unit of brake power, commonly reported as g/kWh or lb/hp/hr.

Use BSFC = fuel mass flow / brake power. In metric form, BSFC in g/kWh equals kg/hr of fuel x 1000 divided by kW of brake power.

Lower BSFC means the engine is using less fuel mass for the same brake power at that operating point. It is better for that point, but real engines have a map: idle, transient operation, rich mixtures, boost, emissions controls, and durability settings can all move BSFC.

Many warmed-up gasoline spark-ignition engines near an efficient load may land roughly around 240-320 g/kWh. Boosted, rich, cold, idle, or transient conditions can be much higher.

Efficient diesel operating points are often modeled roughly around 190-240 g/kWh, but the correct value depends on the exact engine, speed, load, test procedure, fuel, and emissions strategy.

Multiply lb/hp/hr by about 608.277 to convert to g/kWh. For example, 0.44 lb/hp/hr is about 268 g/kWh.

Yes, approximately. Brake thermal efficiency can be estimated as 3600 divided by BSFC in g/kWh times the fuel lower heating value in MJ/kg. Fuel property assumptions matter, so treat it as an estimate unless fuel analysis is measured.

You can use it for early planning, but final sizing needs measured engine-map data, fuel pressure, injector or pump flow curves, duty-cycle margin, temperature, voltage, pickup design, return flow, and professional validation.
